Extreme-C SoundGrid Server
Powerful, compact DSP unit runs hundreds of plugins in real time
USW379-700C-334
[{"nodeGUID":"1be29ea3-2d8e-4475-9730-f6db7be4d8e0","nodeID":381,"documentName":"Extreme-C SoundGrid Server","documentID":0,"documentUrlPath":"/hardware/soundgrid-extreme-server-c","thumb":"/images/products/hardware/600/soundgrid-extreme-server-c.png","msrp":2399.000000000,"skuPrice":2399.000000000,"discount":0,"mainOrder":0,"includedInSBS":0,"skuid":730,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"USW379-700C-334","note":"","documentPageDescription":"Updated with 10-generation Intel\u00AE Core\u2122 CPU, SoundGrid Extreme-C is a powerful and compact (half-rack) DSP unit for real time processing of hundreds of Waves plugins.","tagline":"","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":360,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]
Updated with a 10th-generation Intel® Core™ CPU, sleek industrial design, and brand-new features, this powerful yet compact DSP unit effortlessly processes hundreds of SoundGrid-compatible plugins in real time with latency as low as 0.8 milliseconds.

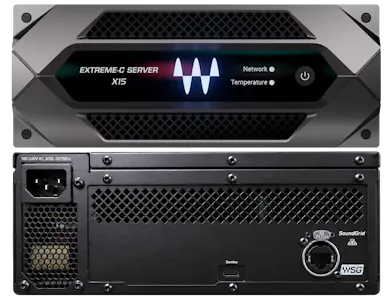

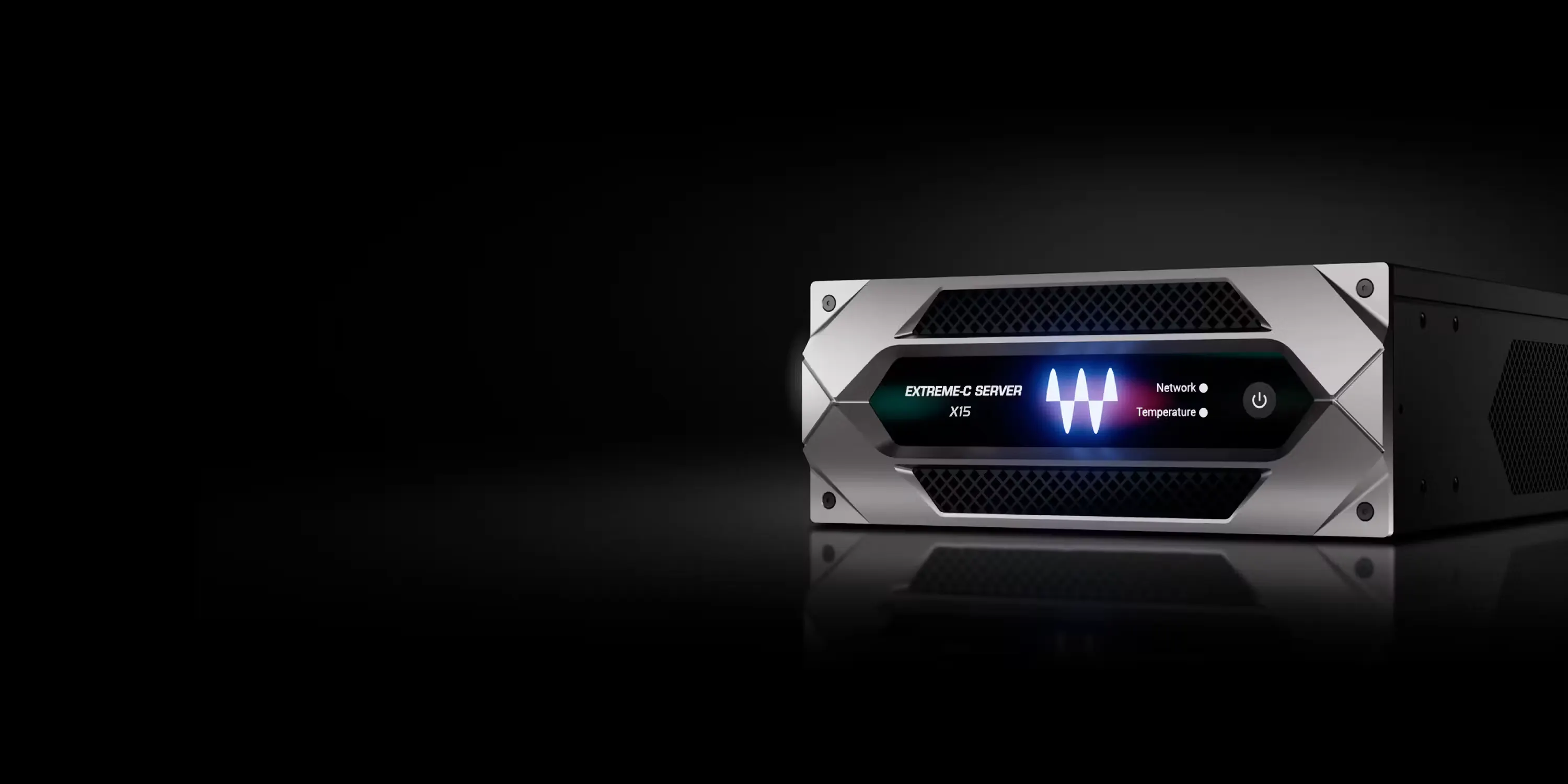

This next-gen Extreme server features a new, elegant industrial design built for durability. With its robust 2U chassis, Extreme Server-C is only half the width of a standard 19-inch rack. Rack-mount one server using rack ears, or for redundancy, mount two units side-by-side on a rack shelf.
Extreme Server-C has LED indicators for easy network and temperature monitoring, sturdy RAM positioning for reliability, and delivers a mixing experience that can withstand the challenges of any setup. It even fits right inside your carry-on—now you can take your mixing to the extreme, wherever you go.
NEW: LEDs for easy network and temperature monitoring
Adds massive processing power to your system
Rugged Neutrik etherCon connector
Ultra-low latency: as low as 0.8 milliseconds at 44.1 – 96 kHz
NEW: Enhanced with sturdy RAM positioning for added reliability
[{"nodeGUID":"275f56d3-298f-47ac-84ee-be7efd36dd84","nodeID":343,"documentName":"eMotion LV1 \u002B Extreme-C Server \u002B 32-Preamp Stagebox \u002B Axis Scope","documentID":343,"documentUrlPath":"/hardware/lv1-extreme-server-32-preamp-stagebox","thumb":"https://media.wavescdn.com/images/products/hardware/600/lv1-extreme-server-32-preamp-stagebox.png","msrp":11799.000000000,"skuPrice":11799.000000000,"discount":0,"mainOrder":20009,"includedInSBS":0,"skuid":866,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"CMBLVEXDSP32R1","note":"","documentPageDescription":"Complete package for world-class live sound: eMotion LV1 live software mixer, 32-preamp SoundGrid stagebox, SoundGrid Extreme Server-C, Axis Scope Waves-optimized computer, 8-port switch and network cables.","tagline":"Live sound combo with 32 inputs and real-time processing ","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":0,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"soldMsg":"","couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0.000000000,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""},{"nodeGUID":"3abbbe75-edbc-4682-b278-00c0d4120771","nodeID":345,"documentName":"eMotion LV1 \u002B FIT Controller \u002B Extreme Server-C \u002B 64-Preamp Stagebox","documentID":345,"documentUrlPath":"/hardware/lv1-fit-extreme-server-64-preamp-stagebox","thumb":"https://media.wavescdn.com/images/products/hardware/600/lv1-fit-extreme-server-64-preamp-stagebox.png","msrp":19099.000000000,"skuPrice":19099.000000000,"discount":0,"mainOrder":20009,"includedInSBS":0,"skuid":867,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"CMBLVDSP64R1","note":"","documentPageDescription":"The ultimate package for world-class live sound: eMotion LV1 live software mixer, FIT controller, two 32-preamp SoundGrid Stageboxes (64 preamps in total), SoundGrid Extreme Server-C, Axis One computer, and accessories. ","tagline":"Feature-laden package for ultra-demanding live sound events","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":0,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"soldMsg":"","couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0.000000000,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""},{"nodeGUID":"714d448d-ca8f-4b41-bf67-94314df5e1bf","nodeID":351,"documentName":"SuperRack SoundGrid Extreme-C Combo","documentID":351,"documentUrlPath":"/hardware/extreme-server-c-combo","thumb":"https://media.wavescdn.com/images/products/hardware/600/extreme-server-c-combo.png","msrp":3249.000000000,"skuPrice":3249.000000000,"discount":0,"mainOrder":20001,"includedInSBS":0,"skuid":995,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"CMBEXTCSB","note":"","documentPageDescription":"The SuperRack Extreme-C Combo for live mixing consoles effortlessly handles your heaviest plugin processing, recording and virtual soundcheck tasks.","tagline":"SuperRack SoundGrid live plugin rack, Extreme-C server, and plugins for live sound","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":0,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"soldMsg":"","couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0.000000000,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""},{"nodeGUID":"390d160f-6b1f-415c-b905-12367f3d5621","nodeID":352,"documentName":"SuperRack SoundGrid Extreme-C Combo for Yamaha RIVAGE PM Consoles","documentID":352,"documentUrlPath":"/hardware/extreme-server-c-combo-for-yamaha-rivage","thumb":"https://media.wavescdn.com/images/products/hardware/600/extreme-server-c-combo-for-yamaha-rivage.png","msrp":4199.000000000,"skuPrice":4199.000000000,"discount":0,"mainOrder":20008,"includedInSBS":0,"skuid":996,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"CMBEXTCHY128SB","note":"","documentPageDescription":"Run Waves plugins in real time on Yamaha RIVAGE PM series consoles: Mix, record and soundcheck with Waves\u2019 high-quality processing, with nearly no latency. I/O card, DSP server, network switch, cables and 5 must-have plugins included.","tagline":"Add extensive processing to RIVAGE PM series consoles","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":0,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"soldMsg":"","couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0.000000000,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]
Loading....
Support
Please note: To mount the server on a Waves Rack Shelf, only use the 8mm screws provided in the rack shelf package!
The table below indicates the number of plugin racks and plugins that can be inserted into SuperRack and loaded to the Extreme-C SoundGrid Server before the system reaches DSP overload (85%) or fails to play audio fluently (clicks, dropouts, corruption).
Configuration (all stereo Racks)
Plugins
Sample Rate
SGS buffer size
Results
CPU Peak
CPU Average
Instances
16 Racks
C6
48 kHz
40
35
34
128
CLA2A
48 kHz
40
14
13
128
DBX160
48 kHz
40
69
66
112
Ren Channel
48 kHz
40
8
8
128
SSL E-Channel
48 kHz
40
10
9
128
H-Reverb
48 kHz
40
84
54
48
H-Delay
48 kHz
40
11
10
128
Ren-Verb
48 kHz
40
25
22
128
F6
48 kHz
40
24
21
128
J37
48 kHz
40
66
64
128
32 Racks
C6
48 kHz
40
83
82
250
CLA2A
48 kHz
40
31
29
256
DBX160
48 kHz
40
83
81
112
Ren Channel
48 kHz
40
20
19
256
SSL E-Channel
48 kHz
40
23
21
256
H-Reverb
48 kHz
40
84
48
42
H-Delay
48 kHz
40
23
21
256
Ren-Verb
48 kHz
40
53
50
256
F6
48 kHz
40
50
45
256
J37
48 kHz
40
83
81
140
64 Racks
C6
48 kHz
40
80
77
224
CLA2A
48 kHz
40
62
60
512
DBX160
48 kHz
40
87
86
135
Ren Channel
48 kHz
40
40
38
512
SSL E-Channel
48 kHz
40
45
43
512
H-Reverb
48 kHz
40
81
52
42
H-Delay
48 kHz
40
46
44
512
Ren-Verb
48 kHz
40
81
76
320
F6
48 kHz
40
81
76
384
J37
48 kHz
40
84
82
140
The maximum number of plugins that can be tested given system limitations is 512 (64 racks) for either mono or stereo. Plugin benchmark results may vary slightly from one system setup to another. While most plugins perform most efficiently at 44.1 kHz, a few perform as or even more efficiently at 96 kHz thanks to their upsampling or to algorithms that do not depend on sample rates.
* Plugin’s peak DSP usage level is much higher than its average level. Make sure to monitor peak levels on the DSP meter.
Extreme-C SoundGrid Server (X10 onwards) is not compatible with the following applications:
eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10
