eMotion LV1 80-Channel Expansion

Expand the LV1 digital mixer to 80 stereo channels / 160 inputs / 52 buses
Loading...

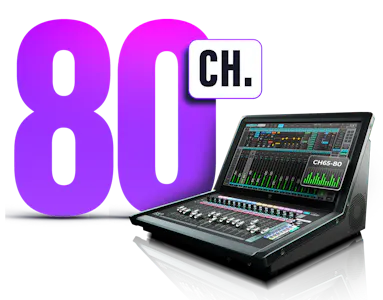

eMotion LV1 80-Channel Expansion main image

Expand LV1 to 80 Stereo Channels, 160 Inputs, 52 Buses: Easy Software Upgrade

Mix bigger shows with LV1 than ever before: With this optional software expansion, your LV1 64-channel/44-bus console – whether LV1 Classic or an LV1 64-ch. software-based system – can easily grow to 80 stereo channels and 52 buses.

This expansion adds 16 more channels to your LV1 64-channel setup, for a total of 80 channels. And since any LV1 channel can be mono (single input) or stereo (two inputs), this expansion grows LV1 to a massive 160 inputs.

The expansion also adds 8 more buses, which can be used either as audio groups or as monitor auxes: Add 8 more audio groups for a total of 16, or 8 more monitor auxes for a total of 24.

  • Expand LV1 to 80 stereo channels (up to 160 inputs), 52 buses
  • Optional software upgrade for LV1 64-ch. digital mixers
  • The added 8 buses can be used as either monitor auxes or audio groups
  • 32 auxes, up to 24 monitor auxes, up to 16 audio groups

LV1 80-Channel vs. 64-Channel Configurations Compared

 LV1 64-Ch
(No Expansion)
LV1 80-Ch
(With Expansion)
Channels (mono/stereo)6480
Inputs (maximum, if all mono)128160
Buses4452
Auxes (stereo/mono): Total2432
(8 are flexible: Monitor Auxes or Audio Groups)
Monitor Auxes1616 or 24
Audio Groups88 or 16
FX Auxes88
Master ChannelsL/R/C/MonoL/R/C/Mono
Matrices (Stereo/Mono)88
Watch It in Action
